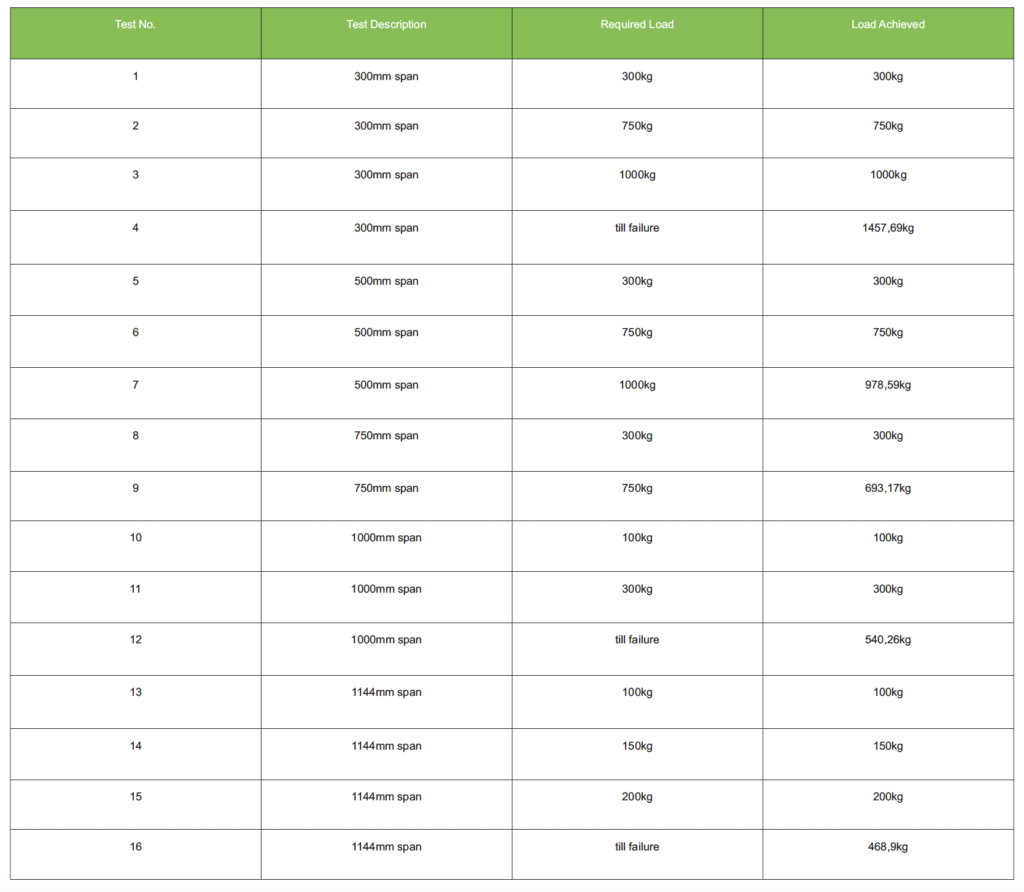

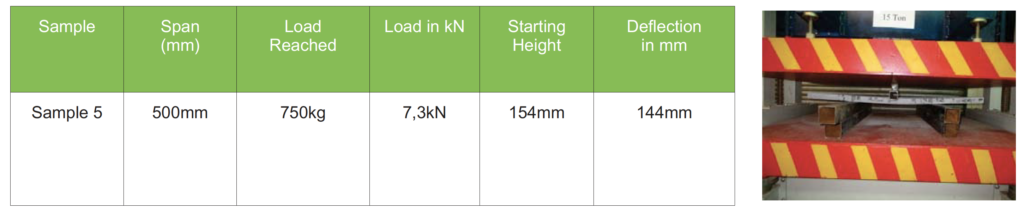

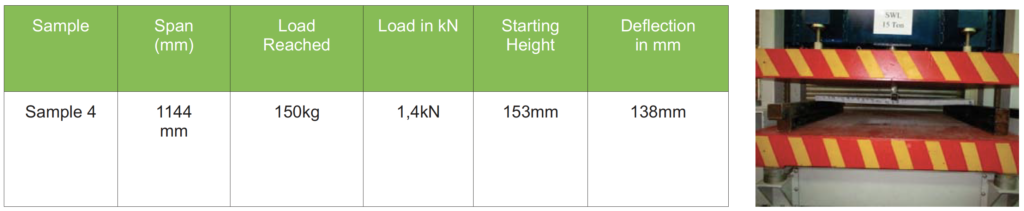

LOAD TESTS

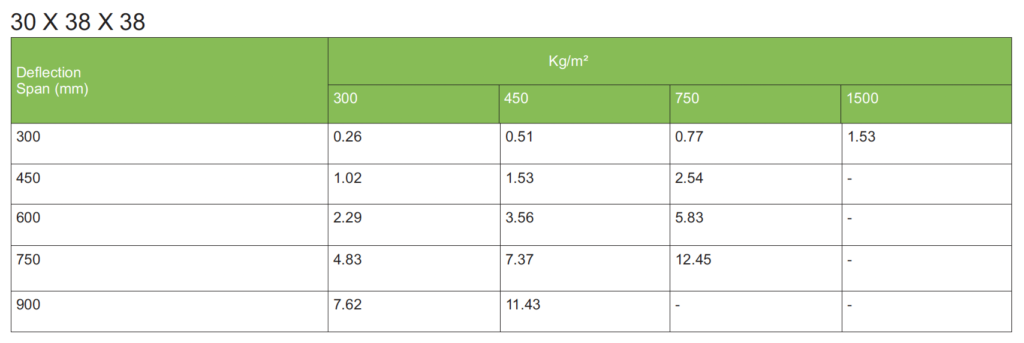

Type JM22 tested. 38X38X38. Refer to ISO 16104:2003

Mass in kilogram (kg): +/- 2%

Pressure in kilopascals (kPa): +/- 3%

Distance/length in millimeters (mm): +/- 2%

Temperature in degrees Celcius (ÅãC): +/- 1%

Humidity in percentage (%): Tolerances are as specified in the agreed test methods

Time in minutes (min): +/- 3%

Torque in Newton meters (Nm): +/- 3 Nm or 10% whichever is the greater
